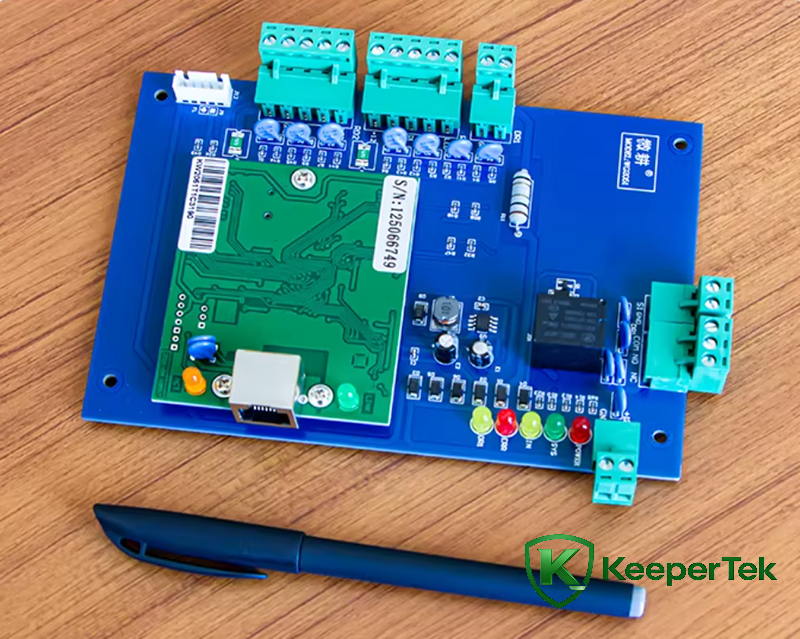

Single-door Two-way Access Controller KT-WG01
Technical Parameters
CPU: High-speed intelligent ARM platform based on 32-bit CPU, unlimited expansion space
Number of registered user cards: 20,000
Offline storage capacity of records: 100,000
Communication mode: TCP/IP 10M/100M adaptive
Wiegand interface: 2 channels
Door contact input: 1 channel
Door lock output: 1 channel
Number of connectable card readers: 1 pair
Controllable door output: 1 set
Matching power supply: 12VDC 4-7A
Power consumption of circuit board: less than 200mA
Card reader input format: Wiegand 26-40 bit
Door opening delay: adjustable from 1 to 600 seconds
Operating temperature: -40 to 70°C
Operating humidity: 10-90%RH, non-condensing
Function: 1 door, entry by card & exit by button, or card access on both sides

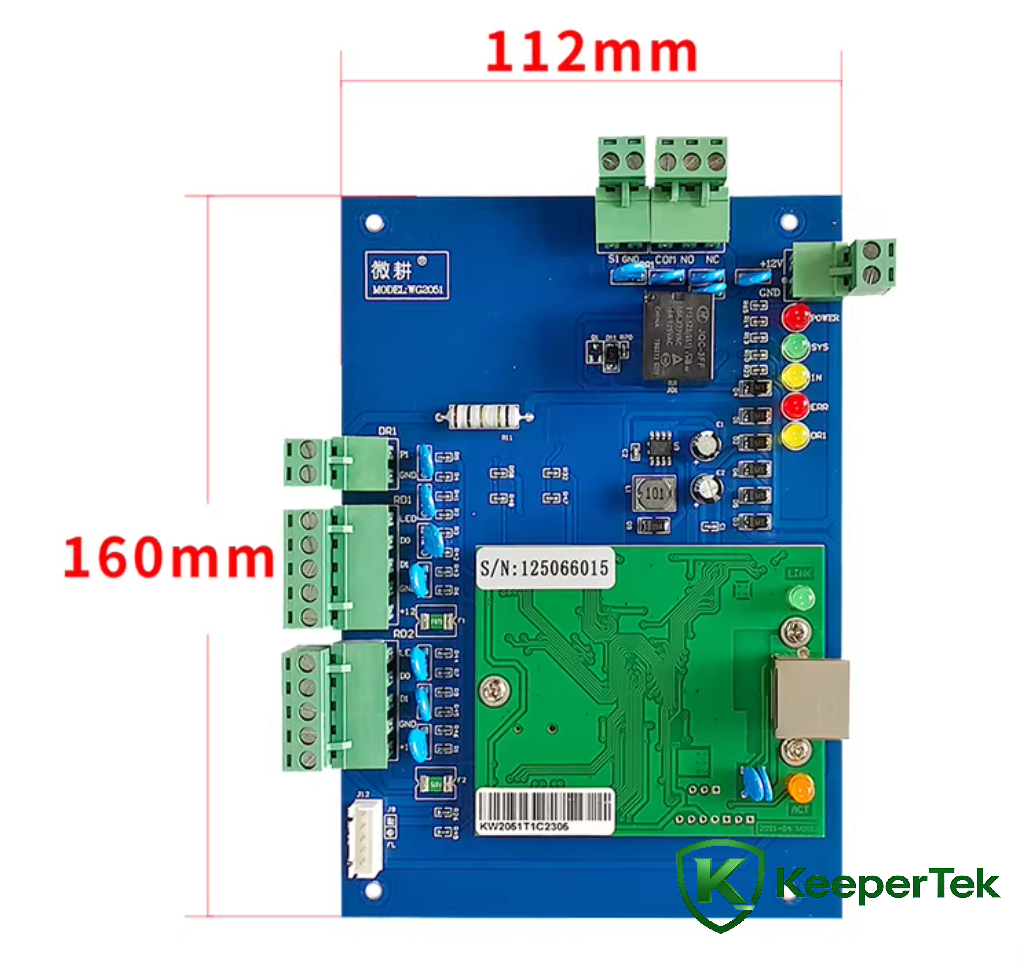

Product Size: 160*112*20MM
